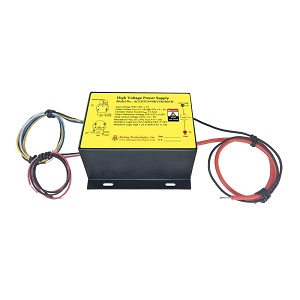

This power module, ACCHV24V8KV3R5MAW, is designed
for achieving DC-DC conversion from low voltage to
high voltage as a power supply source. It can be used
for: Charge capacitors
X-ray Machine
Spectral Analysis
Nondestructive Inspection
Semiconductor Manufacturing Equipment
Particle Accelerator
Capillary Electrophoresis
Particles Injection
Physical Vapor Phase Deposition
Electrospinning Preparation of Nanofiber
DC Reactive Magnetron Sputtering
FEATURES
⚫ Input Power Voltage: 24V ±1V
⚫ Input Current Range: 350mA to 1.6A
⚫ Output Voltage: 0 to 8kV@CTRL = 0 to 5V
⚫ Constant Output Current: 3.5mA
⚫ Reference Voltage: 5V ±0.05V
⚫ Input Control Voltage: 0 to 5V
