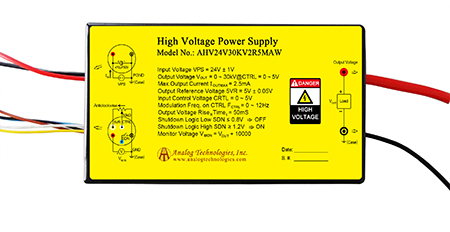

AHV24V30KV1MAW converts an input DC voltage of 24V,
to an output voltage of 30kV with high efficiency. It allows
monitor the output voltage by measuring the voltage of an
output voltage monitor port: multiplying the value 10000
times equals the output voltage. The whole converter is
shielded by a heavy duty metal enclosure, which blocks
EMIs from coming out of the module and going into the
module. This feature is particularly important for noise
intensive environment.
|
