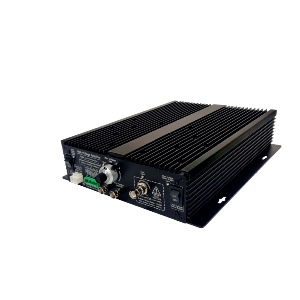

AHVAPN1KV20MA + 24V power
|
| |
|
Quantity in Basket:
None
Code: AHVAPN1KV20MA with 24V power
Price: $1,570.00
|
Volume Price |
|---|
|
Quantity |
Price Each |
|---|
|
1-4 | $1,570.00 |
|
5-8 | $1,550.00 |
|
9-12 | $1,530.00 |
|
13-16 | $1,510.00 |
|
17-20 | $1,490.00 |
|
21-99999 | $1,470.00 |
|
Shipping Weight: 15.00 pounds
Backordered
|
| |
|
The AHVAPN1KV20MA is an electronic module for
amplifying an analog input voltage into a high voltage
output. It comes with a
high voltage DC-DC converter, which converts the
24V input voltage into two output voltages: −1000V
and +1000V. The analog input voltage, VIN(t), can be
from −10V to +10V, the corresponding output voltage,
HVO(t), is from −1000V to +1000V. There are three
LEDs indicating: 24V power supply is present and
within an appropriate window: 23V to 25V, the high
voltage power supply is outputting ±1000V outputs
properly, and the control loop works properly, i.e.
HVO(t)=100×VIN(t).
|
|
