Glass Encapsulated for Long Term Stability & Reliability
High Stability: <0.1ºC/Y
Small Size: Φ0.55mm×1.20mm
High Resistance Accuracy: 0.5%
Quick Response Time： 1s
Wide Temp. Range: –30°C to 300°C
Leads: dumet wires (copper-clad FeNi)
100% Lead (Pb)-free and RoHS Compliant
APPLICATIONS
The ATH10KR55B3950K
thermistor is ideal for temperature sensing in high-precision devices such as laser diodes and optical components that require accurate temperature monitoring. In addition, due to its low cost, it is also suitable for use in automotive electronics, industrial electronics, and home appliances where cost-effective temperature sensing is required.
DESCRIPTION

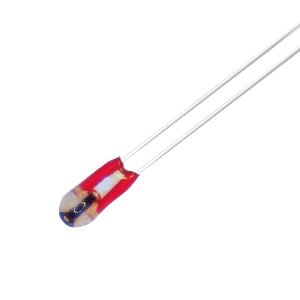

The ATH10KR55B3950K
is a high precision glass encapsulated thermistor. Comparing with conventional epoxy encapsulated thermistors, ATH100KR8B3950K0.5%
presents higher long term stability and wider temperature range. In addition, it has a small size and short response time.
