Code: ATI242000A
Price: $3,500.00
Volume Price
Quantity
Price Each
1-4
$3,500.00
5-8
$3,400.00
9-12
$3,300.00
13-16
$3,150.00
17-20
$3,000.00
21+
$2,900.00
Shipping Weight: 13.00 pounds
Backordered

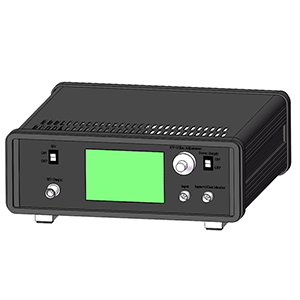

The ATI242000A is an electronic module for amplifying an
analog input voltage into a high voltage output. Figure 1 shows
its physical photos. It comes with a high voltage AC-DC
converter, which converts the 110VAC/220VAC input voltage
into a 0V to 2kV output voltage. The analog output voltage can
swing almost from 0V to 2kV when it is powered by an
110VAC/220VAC power supply. There is an LCD display
indicating if the amplifier works properly.
