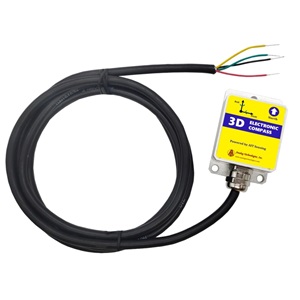

The EC-3243-R02 is a cost-effective,three-dimensional electronic compass designed forhigh-precision heading data in demanding applications.Its patented hard and soft iron calibration algorithmenables exceptional accuracy even at extremeinclinations of up to 90°.
This compact, low-power module integrates a threeaxis magnetometer and a three-axis accelerometer. Theonboard processor uses the accelerometer for real-timetilt compensation, ensuring reliable heading informationfrom 0° to 360° even in harsh environments.
For maximum flexibility, the EC-3243-R02 supportsRS232, RS485, and TTL interfaces with a configurablebaud rate from 2400 to 115200 bps. It offers bothhexadecimal and Modbus protocol outputs, allowing forquick and easy integration into a wide range ofminiature, high-precision measurement systems.
